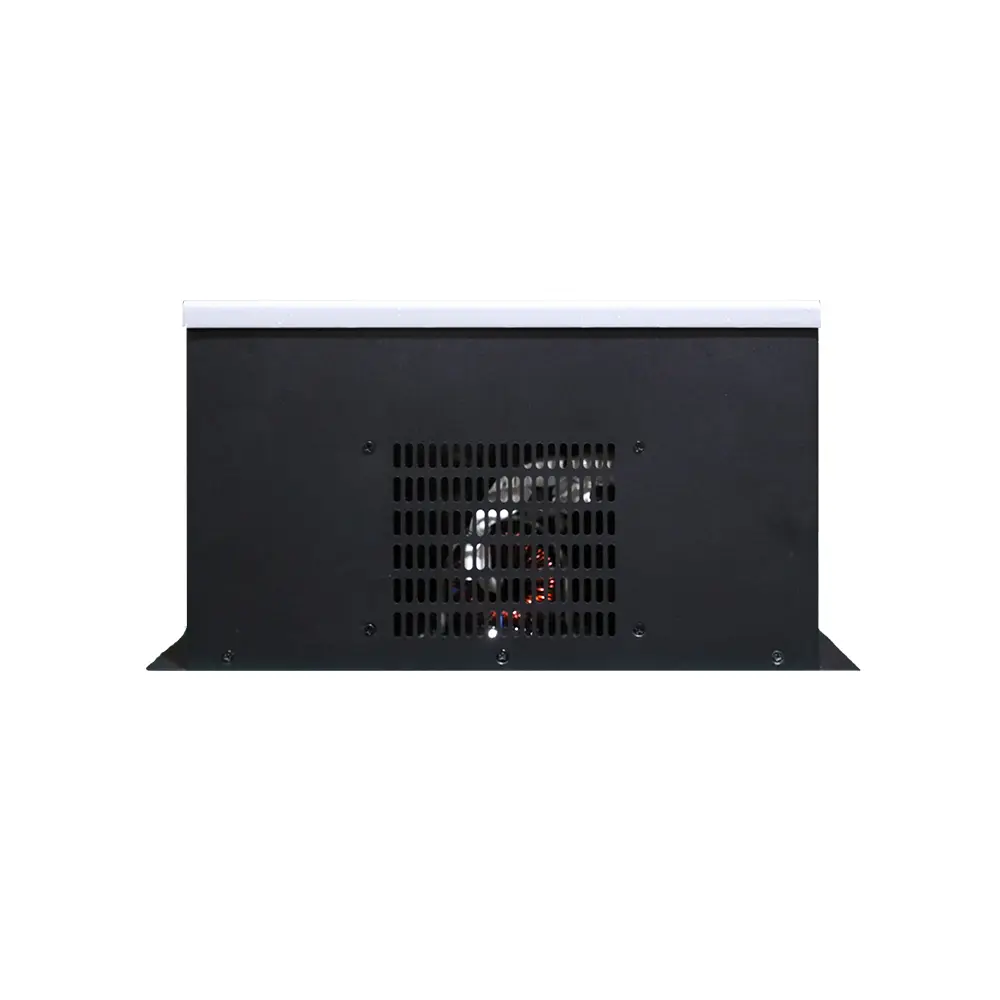

192V 240V 360V 384V 50a-100A MPPT solar battery charge controller

(1 customer review)
  • Advanced MPPT (maximum power point tracking) technology, efficiency no less than 99.5%
  • High-quality components to improve system performance, the maximum conversion efficiency can up to 98%
  • Ultra-fast speed of maximum power point tracking and tracking efficiency
  • Accurate identification of the peak of maximum power point tracking
  • Reliable function of enter the automatic power limit maximum PV array, ensure that any conditions will not overload
  • Wide range of photovoltaic array maximum power point voltage
  • LCD design, dynamic display operating data and status
  • With battery temperature compensation function
  • Real-time power statistics logging
  • Standard Mod bus communication protocol based on RS-485 bus to maximize meet different communication needs
Category:
Model BK-MPPT-192V 50A BK-MPPT-192V 100A BK-MPPT-240V 50A BK-MPPT-240V 100A BK-MPPT-360V 50A BK-MPPT-360V 100A BK-MPPT-384V 50A BK-MPPT-384V 100A
Rated system voltage 192VDC 240VDC 360VDC 384VDC
Rated charging current 50A 100A 50A 100A 50A 100A 50A 100A
PV open circuit voltage input range 300V~400V 350V-480V 500V-645V 580V~680V
max power point voltage range 240V~320V 275V-384V 415V-516V 440V~544V
Recommend PV open circuit Voltage 343V±10V 400V±10V 600V±10V 625V±10V
Efficiency ≥98%
Empty loss ≤5W
Temperature compensation algorithm -2mV/℃/2V
Communication RS485
ambient working temperature range 0℃~+40℃(Reduce power usage beyond temperature range)
Storage temp. Range -15℃~+50℃
Altitude ≤95%,no condensation
relative humidity ≤4000m,(For power reduction above 2000m, it will be reduced by 2% every 100m.)
IP level IP20
Measurement DxWxH 393*203*507
mounting hole size 370*309
Installation hole radius M6
N.G(kg) 20 23 21 24 21 24 21 24

FAQ

Q1. Can I get a XXX sample order for test?
A.Yes, we welcome sample order to test and check before bulk order.

Q2. What is the lead time for different products?
A.Standard in stock products 5-7 days, bulk order time needs 3-5 weeks, customized order needs 35 days.

Q3. Do you have any MOQ limit?
A.Yes, we have MOQ for standard production. 1 pc for sample to test is support.

Q4. How do you ship the sample or the bulk order?
A.We usually ship via DHL, UPS, FedEx or Express. It usually takes within a week to arrive. Bulk order is usually shipped by sea.

Q5. How to proceed with the order?
1st Understand specific product requirements and application scenarios
2nd Propose solutions and provide quotations
3rd Finalize the plan, sample order, deposit
4th Order production, delivery of the balance, arrange delivery

Q6. Is it OK to do OEM/ODM for my own logo?
A. Yes. Please share to us with your logo after the order confirmed.

Q7. How about the warranty condition of inverter/UPS?
A. All of industrial or commercial inverter/UPS with 2 year warranty.

Q8. How about cycles life and warranty of the lithium batteries?
A. All of batteries are 2000 cycles lifespan under 80% DOD or 2 years warranty.

Q9. How to choose a right power system?
A. We will recommend you a suitable one in accordance with your requirements and actual applications. To invest a reliable system will cost you less in the long run and bring you wonderful experience.

Q10. Do you provide mounting structures and cables for installations?
A. Yes, we provide all accessories with product including nuts/bolts for the optional guiding, so you can even do it installations yourself.

About Baykee

Aerospace Baykee (Guangdong) Technology Co., Ltd. Relying on the technical benefits of aerospace and the advantages of highly educated personnel in civil industry, focusing on the dual-use field of power technology,

specializing in R & D, production and sales of industrial power supplies, customized power supplies, etc., has formed network energy, renewable energy, emergency power supply system, industrial special power supply, power quality management five business segments. The company has advanced technology of UPS/EPS emergency power supply, modular data center, solar PV inverter, charging pile, energy storage equipment, intelligent power distribution and other homologous products.

At present, the company focuses on emerging industries such as smart city & big data, smart energy, smart transportation, pv energy storage system, and has formed a comprehensive solution such as IDC data center, communication power system, optical storage and charging integrated smart energy system, and intelligent power supply system for rail transit

Baykee Mission & Attitude

Relying on the technical advantages of aerospace and the advantages of the military and civil industry compound highly educated talents, focusing on the “high, fine and advanced” field, to become a leading power quality service provider.

Cooperative, trustworthy and professional:
Aerospace Baykee adheres to the multi-dimensional cooperation strategy, provides customers with personalized and all-round pre-sales technical guidance and the most reliable after-sales guarantee, and provides power for energy development with solid professional background.

Baykee Factory

Baykee Factory

1. Independent factory
Founded in 2007, the company adheres to the strategy of innovation-driven development, adheres to the concept of “high-end service, excellence”, and adheres to the road of independent brand development. In Foshan has headquarters R & D production base 20000 square meters.
2. More than ten mature production lines
It has more than 350 professional manufacturing plants and more than ten professional production lines.
3. Strong independent research and development team, software and hardware independent research and development
The company has set up a provincial enterprise technology center and a provincial engineering center, and built a CNAS laboratory. Baykee has more than 80 scientific and technological personnel. In the power related fields to create outstanding performance, has launched UPS uninterrupted power, photovoltaic solar inverter, industrial energy storage system, home energy storage system, outdoor energy storage system and other more than 10 high-end power products with industry leading advantages.
4. Timely delivery
The company delivers 130,000 sets of products per month

Quality Assurance

The company has passed ISO9001 quality management system certification, CE certification, IEC certification, MSDS, UN38.3 energy conservation certification, TLC certification, undertook the Guangzhou Tower, Guangdong-Hong Kong-Macao Bridge, Olympic venues, Pakistan Orange Line subway, Nigeria National Railway, Costa Rica National Stadium (ESTADIO NACIONAL DE) COSTA RICA), Iraq Hospital, Hong Kong Queen Mary Hospital, etc.

1 review for 192V 240V 360V 384V 50a-100A MPPT solar battery charge controller

  1. Kai he ma

    The 192V-384V MPPT solar battery charge controller is a top-notch performer with remarkable efficiency, fast tracking, and comprehensive data display. Highly recommended for solar setups.
