| Model | TYN-M-20K-M20 | TYN-M-60K-M20 | TYN-M-120K-M20 | TYN-M-200K-M20 |
| Rated output capacity | 20kW | 60kW | 120kW | 200kW |
| Working mode | solar、AC Hybrid storage inverter | |||
| Working turn | Solar—Mains—Battery | |||
| Isolation type | Non-isolated high frequency | |||
| Power module model | TYN-M-20K-PM | |||
| Number of power modules can be configured | 1pcs | 1～3pcs | 1～6pcs | 1～10pcs |
| Solar | ||||
| Max input capacity | 10kW×2 | 10kW×6 | 10kW×12 | 10kW×20 |
| Rated operating voltage | 500V | |||
| Max input voltage | 800V | |||
| MPPT range | 400~800V | |||
| Max input current | 25A×2 | |||
| Input line | 2 | 6 | 12 | 20 |
| Gird（Converter） | ||||
| Rated operating voltage | L-L:380/400/415 Vac，L-N:220/230/240 Vac, | |||
| M-3Phase 4Wire（or single phase 2 wire) + PE | ||||
| Rated operating frequency | 50/60Hz | |||
| input voltage range | ±25%，-40%（half load ） | |||
| input frequency range | ±10% | |||
| Input power factor | ≥0.95（20～50% load ）≥0.99（100%load） | |||
| Current harmonic | ≤5%（50%load）≤3%（100%load） | |||
| (2~39times) | ||||
| Max input capacity | 30kW | 90kW | 180kW | 300kW |
| Max output capacity | 20kW | 60kW | 120kW | 200kW |
| Max input current | 45A | 135A | 270A | 450A |
| Grid current DC component | ≤0.5% current rated value | |||
| Island protection time | 2s | |||
| Generator mode | Yes | |||
| Output（inverter ） | ||||
| Rated working voltage | L-L:380/400/415 VAC，L-N:220/230/240 VAC 3Phase 4Wire（or single phase 2 wire) + PE | |||
| Rated working frequency | 50/60Hz±0.5Hz | |||
| Output voltage stabilization accuracy | ≤±1% | |||
| Frequency tracking rate | 0.2Hz/s～2Hz/s | |||
| Waveform distortion | Sine wave, distortion：≤3%（liner load ）≤5%（non-liner load） | |||
| Output DC component | ≤1% | |||
| Three-phase voltage phase deviation | 2º | |||
| Dynamic transient characteristics | The dynamic transient range of inverter output is less than 10%, and the transient recovery time is <20mS | |||
| Crest factor | 3:01 | |||
| Overload capacity | 105% overload delay 10 minutes protection, 125% overload delay 1 minute, more than 150% protection immediately | |||
| Working system | Three in and three out, three in and three out, single in and single out, single in and three out (optional) | |||
| Working mode | On and off grid, off grid (optional) | |||
| No-load circulation in parallel | ≤5% | |||
| Current imbalance in parallel | ≤5% | |||
| Self aging function | 25%，50%，75%，100% (optional) | |||
| Battery | ||||
| Rated voltage | 240V (192V~288V Can be adjusted) | |||
| Max current | 120A | 360A | 720A | 1200A |
| Battery type | Lead-acid batteries, lithium batteries (or similar batteries) | |||
| Battery capacity | configurable | |||
| Charging mode | Temperature compensated constant current, constant pressure (Three-stage @ lead-acid battery) | |||
| Float charging voltage | 2.25V±1% /cell (@25℃，lead-acid battery) | |||
| equal charging voltage | 2.34V±1% /cell (@25℃，lead-acid battery) | |||
| Temperature compensation | -3mV/℃/cell (@ lead-acid battery) | |||
| Maximum charging capacity | ≤50% (can be set), Expandable external isolation charger | |||
| System parameters | ||||
| Switching time | 0ms | |||
| Inverter efficiency | ≥95% | |||
| Protection function | Battery reverse connection protection, PV reverse connection protection, output short circuit, overload, over voltage, phase sequence, over temperature, fan fault, etc | |||
| cooling way | Temperature controlled air cooling | |||
| Protection grade | IP20 | |||
| Running environment | temperature-20～50℃ | |||
| Relative humidity | 30%～95%（No condensation） | |||
| Running height (maximum) | <1000 meters (1% drop in capacity per 100 meters, up to 4000 meters) | |||
| Installation method | Based on customer’s requirements and the project site condition | |||
| Size W*D*H（mm） | 800*200*1000 | 600*800*1200 | 600*800*1800 | 600*800*2200 |

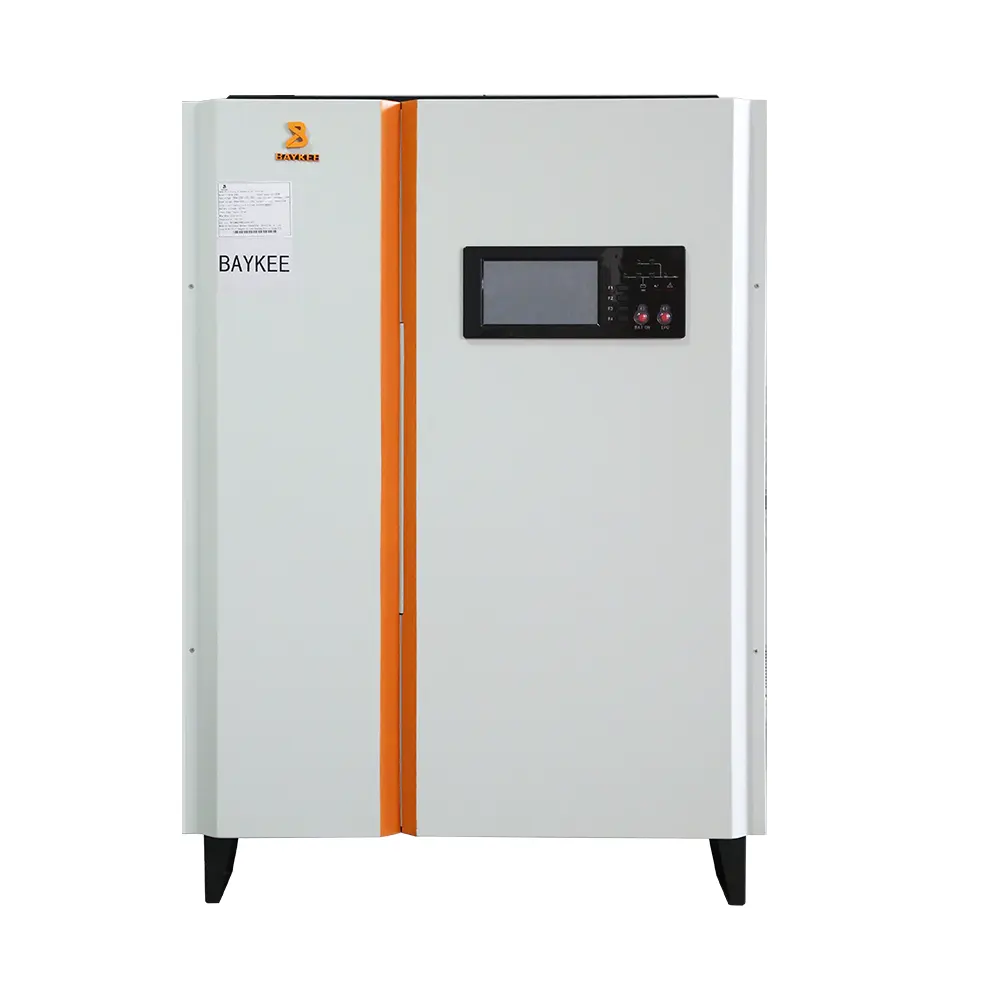

On/Off grid hybrid inverter with Mppt charge controller TYN-M-20K-M20 20Kw
- Integrated design: built-in MPPT controller, charger, rectifier, inverter, display system, active circuit, etc.
- Multi-working mode: solar grid-connected power generation, solar off-grid power supply, solar energy storage, UPS power supply, backup power supply, etc.
- Multi-system design: 3in3out, 3in1out, 1in1out, 1in3out.
- Intelligent digital control: large LCD display, Chinese and English operation menu; High-speed DSP microcontroller; The sixth generation IGBT with high speed and low energy consumption; Equipped with RS485 port, SNMP card, remote control and monitoring.
- Perfect protection function: overshoot protection, overload protection, over-temperature protection, surge protection, etc.
- Excellent load characteristics: meet the load jump from 0 to 100%, no need to switch bypass and ensure stable output.
