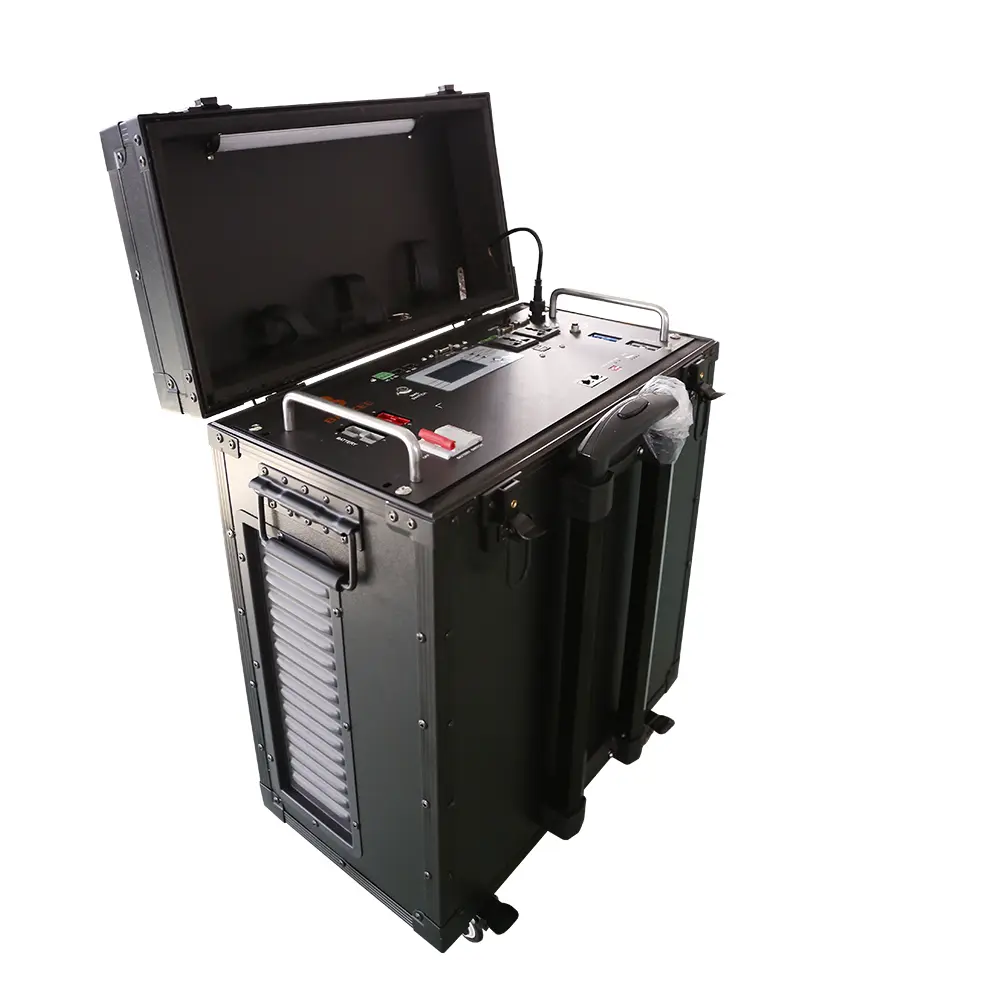

Portable lithium battery energy storage system BK48100-5KVA 100ah solar generator

(1 customer review)

The lithium battery energy storage system combines the characteristics of the traditional inverter and the battery charger. It contains a 50/100Ah lithium-iron phosphate battery, which can provide the load device with uninterruptible power supply. The LCD panel provides users with various parameter setting functions. At the same time, the simple button operation allows the user to set the battery charging current and the acceptable voltage range according to the usage environment, to meet various application levels.This product is suitable for lithium battery communication backup power supply, mains emergency power supply, and provides protection and recovery functions for over-voltage, under-voltage, over-current, high temperature, low temperature and short circuit of the battery pack. Accurate measurement of SOC during charging and discharging, and SOH health status statistics.

Category:
Model BK4850-3KVA BK48100-5KVA
Lithium battery capacity 50Ah 100Ah
Inverter capacity 3kVA 5kVA
Rated input voltage 230VAC
Input voltage range 170-255VAC
Rated input frequency 50/60Hz
Power Factor pf=1.0
Maximum Charging current 10~140A
AC Output voltage 220VAC± 5%
DC Output voltage 40~60VDC
Photovoltaic (PV) Yes
Power capacity 4KW
Efficiency 98.0% max.
PV module MPPT working voltage range 60~115Vdc
Battery voltage accuracy +/-0.3%
PV Voltage accuracy +/-2V
Efficiency >90%
Transfer time <10 ms
Harmonic distortion <5%
Overload capacity ≤125% 1min ;≤150% 5s
Battery nominal voltage 48VDC
Relative humidity ≤95%(45℃±2℃)
Protection function Overload, Overvoltage, Under voltage, Over temperature, Short circuit protections , etc
Safety standards CE
Operating temperature 0℃~45℃
Storage temperature -15℃~60℃
Atmospheric pressure 70kPa~106 kPa
Weight Kg <45 <65
Size (W*D*H)mm 500*320*550

FAQ

Q1. Can I get a XXX sample order for test?
A.Yes, we welcome sample order to test and check before bulk order.

Q2. What is the lead time for different products?
A.Standard in stock products 5-7 days, bulk order time needs 3-5 weeks, customized order needs 35 days.

Q3. Do you have any MOQ limit?
A.Yes, we have MOQ for standard production. 1 pc for sample to test is support.

Q4. How do you ship the sample or the bulk order?
A.We usually ship via DHL, UPS, FedEx or Express. It usually takes within a week to arrive. Bulk order is usually shipped by sea.

Q5. How to proceed with the order?
1st Understand specific product requirements and application scenarios
2nd Propose solutions and provide quotations
3rd Finalize the plan, sample order, deposit
4th Order production, delivery of the balance, arrange delivery

Q6. Is it OK to do OEM/ODM for my own logo?
A. Yes. Please share to us with your logo after the order confirmed.

Q7. How about the warranty condition of inverter/UPS?
A. All of industrial or commercial inverter/UPS with 2 year warranty.

Q8. How about cycles life and warranty of the lithium batteries?
A. All of batteries are 2000 cycles lifespan under 80% DOD or 2 years warranty.

Q9. How to choose a right power system?
A. We will recommend you a suitable one in accordance with your requirements and actual applications. To invest a reliable system will cost you less in the long run and bring you wonderful experience.

Q10. Do you provide mounting structures and cables for installations?
A. Yes, we provide all accessories with product including nuts/bolts for the optional guiding, so you can even do it installations yourself.
